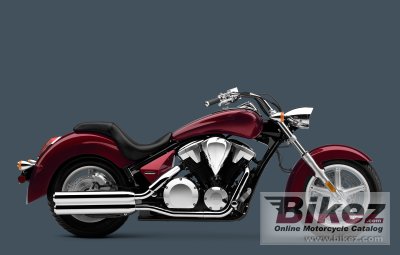

Honda Stateline ABS 20112011 Honda Stateline ABS specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda Stateline ABS |
| Year model | 2011 |
| Type | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1312.0 ccm (80.06 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. PGM-FI with automatic enrichment circuit, one 38mm throttle body |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 33.0° |
| Front suspension | 41mm fork |
| Front wheel travel | 102 mm (4.0 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 99 mm (3.9 inches) |
| Front tire | 140/80-17 |
| Rear tire | 170/80-15 |
| Front brakes | Single disc. Anti-lock braking (ABS) |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc. Anti-lock braking (ABS) |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 309.0 kg (681.2 pounds) |
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1781 mm (70.1 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Black, Candy Dark Red |
| Starter | Electric |
| Factory warranty | One year transferable, unlimited-mileage limited warranty |
