General information |
|
Model
|

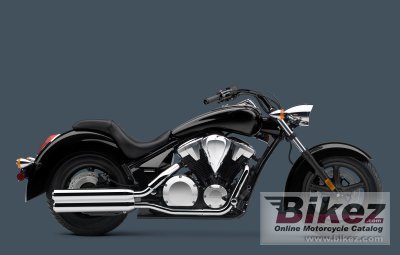

Honda Stateline |
|
Year model
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 12150. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1312.0 ccm (80.06 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
52 degrees V-twin |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
89.5 x 104.3 mm (3.5 x 4.1 inches) |
|
Valves per cylinder
|
3 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital with 3-D mapping, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Emission details
|
Meets current EPA standards. Models sold in California meet current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
33.0° |
|
Trail
|
118 mm (4.6 inches) |
|
Front suspension
|
41mm fork |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
99 mm (3.9 inches) |
|
Front tire
|
140/80-17 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
336 mm (13.2 inches) |
|
Rear brakes
|
Single disc. Single-piston caliper. |
|
Diameter
|
296 mm (11.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
304.8 kg (672.0 pounds) |
|
Seat height
|
678 mm (26.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1781 mm (70.1 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Factory warranty
|
One year. Unlimited milage. Transferable. |
|
Comments
|
Model ID: VT1300CR. Also called Honda 1300 Custom Stateline. |
