General information |
|
Motorcycle name
|

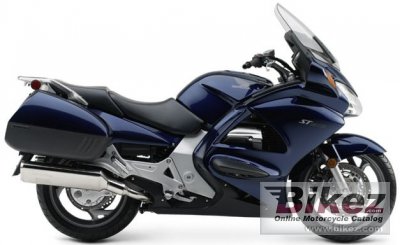

Honda ST 1300 ABS |
|
Year model
|
2004 |
|
Type
|
Sport touring |
| Price as new | US$ 14499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1261.0 ccm (76.95 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Effect
|
118.0 HP (86.1 kW)) @ 8000 RPM |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6500 RPM |
|
Top speed
|
225.0 km/h (139.8 mph) |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
78.0 x 66.0 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital transistorized |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Fuel consumption
|
5.05 litres/100 km (19.8 km/l or 46.58 mpg) |
|
Greenhouse gases
|
117.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum-alloy triple-box-section pressure cast dual-spar with cast aluminum-alloy swingarm |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
45.0mm HMAS cartridge fork. |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
HMAS gas-charged single shock with five-position spring-preload adjustability; |
|
Rear wheel travel
|
122 mm (4.8 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
170/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. ABS. |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
323.0 kg (712.1 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
935 mm (36.8 inches) |
|
Overall length
|
2282 mm (89.8 inches) |
|
Overall width
|
1330 mm (52.4 inches) |
|
Wheelbase
|
1491 mm (58.7 inches) |
|
Fuel capacity
|
29.14 litres (7.70 US gallons) |
|
Oil capacity
|
3.90 litres (4.12 US quarts) |
|
Other specifications |
|
Color options
|
Pearl Dark Blue |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
K & N - KN-204-1 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Battery
|
YTZ14S |
|
Spark plugs
|
NGK CR8EH-9, NGK CR8EHIX-9 |
|
Idle speed
|
1000 +/- 100 RPM |
|
Tire pressure front
|
42 PSI (2.9 Bar or 290 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
45 mm (1.8 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
