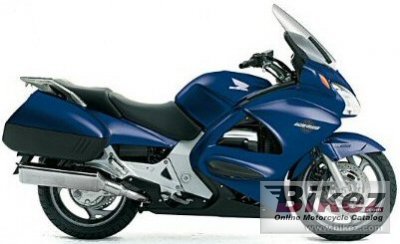

Honda ST 1300 20052005 Honda ST 1300 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Honda´s ST1300 has set the standard as the finest, most performance-packed sport-tourer the world has ever known. With its potent, longitudinally mounted V-4 engine, rigid twin-spar aluminum chassis and sleek bodywork, complemented by deluxe features like an electronically adjustable windscreen, it´s easy to see why gas is the only thing you´d occasionally want to stop for. |
| General information | |
|---|---|
| Motorcycle name | Honda ST 1300 |
| Year model | 2005 |
| Type | Sport touring |
| Price as new | US$ 13699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1261.0 ccm (76.95 cubic inches) |
| Type of engine | V4, four-stroke |
| Effect | 118.0 HP (86.1 kW)) @ 8000 RPM |
| Torque | 117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6500 RPM |
| Compression | 10.8:1 |
| Bore x stroke | 78.0 x 66.0 mm (3.1 x 2.6 inches) |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) with automatic enricher circuit |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front Suspension |
| Rake (fork angle) | 26.0° |
| Trail | 98 mm (3.9 inches) |
| Front suspension | 45.0mm HMAS cartridge fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | HMAS gas-charged single shock with five-position spring-preload adjustability; |
| Rear wheel travel | 122 mm (4.8 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 170/60-ZR17 |
| Front brakes | Double disc. LBS 3-piston calipers. |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. LBS 3-piston calipers. |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Dry weight | 286.2 kg (631.0 pounds) |
| Power/weight ratio | 0.4123 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Wheelbase | 1491 mm (58.7 inches) |
| Fuel capacity | 29.14 litres (7.70 US gallons) |
| Other specifications | |
| Color options | Candy Dark Red |
| Starter | Electric |
| Comments | Model ID: ST1300 |
