Honda ST 1100 Pan-European 20012001 Honda ST 1100 Pan-European specifications, pictures, reviews and rating |

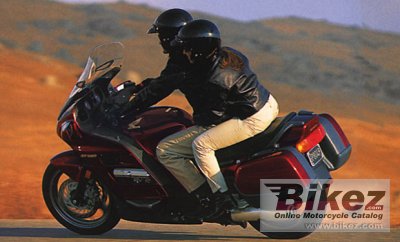

2001 Honda ST 1100 Pan-European. Picture by Honda. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Model name | Honda ST 1100 Pan-European |
| Model year | 2001 |
| Category | Touring |
| Rating | 3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1085.0 ccm (66.21 cubic inches) |
| Engine type | V4, four-stroke |
| Power output | 98.0 HP (71.5 kW)) @ 7500 RPM |
| Torque | 109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 6000 RPM |
| Top speed | 217.0 km/h (134.8 mph) |
| Compression | 10.0:1 |
| Bore x stroke | 73.0 x 64.8 mm (2.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. CV-type, 34 mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital transistorized. |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube |
| Rake (fork angle) | 27.5° |
| Trail | 101 mm (4.0 inches) |
| Front suspension | Air-assist telescopic fork with TRACK, 43 mm |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Single-side conventional damper with adjustable preload and rebound |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 160/70-ZR17 |
| Front brakes | Double disc. ABS. |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. ABS. |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Dry weight | 297.0 kg (654.8 pounds) |
| Weight incl. oil, gas, etc | 325.0 kg (716.5 pounds) |
| Power/weight ratio | 0.3300 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase | 1555 mm (61.2 inches) |
| Fuel capacity | 28.00 litres (7.40 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | K & N - KN-303 |
| Brake fluid | DOT 4 |
| Coolant | 3.00 litres (0.79 US gallons) |
| Battery | YTX14-BS |
| Spark plugs | NGK CR8EH-9, NGK CR8EHIX-9 |
| Idle speed | 1000 +/- 100 RPM |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 42 PSI (2.9 Bar or 290 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
