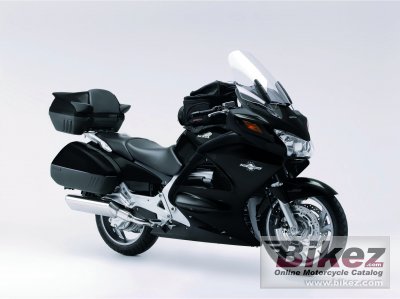

Honda ST1300 Pan-European 20122012 Honda ST1300 Pan-European specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| There´s hardly a highway or by-way in Europe that hasn´t been conquered by the coveted and super-accomplished Pan-European. Its impressive V4 engine is breathtakingly capable, delivering sporty blasts of acceleration when you want them as well as the power to carry a full load for long distances. |
| General information | |
|---|---|
| Model | Honda ST1300 Pan-European |
| Year model | 2012 |
| Type | Sport touring |
| Rating | 3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1261.0 ccm (76.95 cubic inches) |
| Type of engine | V4, four-stroke |
| Engine details | 90º V-4 |
| Effect | 117.0 HP (85.4 kW)) @ 8000 RPM |
| Torque | 117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6500 RPM |
| Compression | 10.8:1 |
| Bore x stroke | 78.0 x 66.0 mm (3.1 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Computer-controlled digital with three-dimensional mapping and electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Enclosed shaft with integrated dampers |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.0° |
| Trail | 98 mm (3.9 inches) |
| Front suspension | 45mm HMAS cartridge fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | HMAS gas-charged single shock with five-position spring-preload adjustability |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 170/60-ZR17 |
| Front brakes | Double disc. Combined three-piston callipers, (ABS) and sintered metal pads |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Combined three-piston calliper, (ABS) and sintered metal pads |
| Diameter | 316 mm (12.4 inches) |
| Wheels | Hollow-section triple-spoke cast aluminium |
| Physical measures and capacities | |
| Dry weight | 283.0 kg (623.9 pounds) |
| Power/weight ratio | 0.4134 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1332 mm (52.4 inches) |
| Overall length | 2282 mm (89.8 inches) |
| Overall width | 935 mm (36.8 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 29.14 litres (7.70 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Black, white, red |
| Starter | Electric |
| Factory warranty | Three years transferable, unlimited-mileage limited warranty |
| Comments | Model ID: ST1300 |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Honda ST1300 Pan-European discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
