General information |
|
Motorcycle name
|

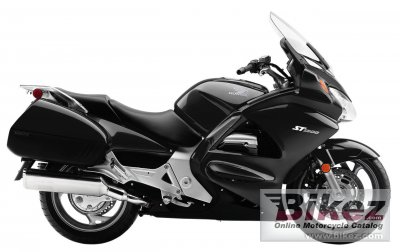

Honda ST1300 ABS |
|
Year of manufacture
|
2012 |
|
Type
|
Sport touring |
| Price as new | US$ 18230. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1261.0 ccm (76.95 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
78.0 x 66.0 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital with 3-D mapping and electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Fuel consumption
|
6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
|
Greenhouse gases
|
155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Meets current California Air Resources Board (CARB) and EPA standards. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
45mm HMAS cartridge fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
HMAS gas-charged single shock with five-position spring-preload adjustability |
|
Rear wheel travel
|
122 mm (4.8 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
170/60-ZR17 |
|
Front brakes
|
Double disc. ABS. CBS three-piston calipers. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. ABS. CBS three-piston calipers. |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
331.1 kg (730.0 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1491 mm (58.7 inches) |
|
Fuel capacity
|
29.14 litres (7.70 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Factory warranty
|
Three Years. Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
|
Comments
|
Model ID: ST1300A |
