Honda's profilation of this bike |
Gold Wing-inspired luxury and CBR-derived performance have been impeccably fused, with wind-tunnel-honed bodywork and hard saddlebags complementing a powerful V-4 engine, shaft drive, a race-bred chassis, and ABS. |
General information |
Model name
|

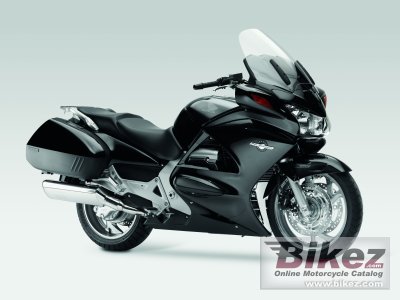

Honda ST1300 ABS |
Year
|
2011 |
Category
|
Sport touring |
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Displacement
|
1261.0 ccm (76.95 cubic inches) |
Engine type
|
V4, four-stroke |
Compression
|
10.8:1 |
Bore x stroke
|
78.0 x 66.0 mm (3.1 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled digital with three-dimensional mapping and electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
45mm HMAS cartridge fork; 4.6 inches travel |
Rake (fork angle)
|
26.0° |
Front suspension
|
45mm HMAS cartridge fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
HMAS gas-charged single shock with five-position spring-preload adjustability |
Rear wheel travel
|
122 mm (4.8 inches) |
Front tire
|
120/70-ZR18 |
Rear tire
|
170/60-ZR17 |
Front brakes
|
Double disc. Anti-Lock Brakes |
Diameter
|
310 mm (12.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
316 mm (12.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
331.1 kg (730.0 pounds) |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Wheelbase
|
1491 mm (58.7 inches) |
Fuel capacity
|
29.14 litres (7.70 US gallons) |
Other specifications |
Color options
|
Black |
Carrying capacity
|
Two hard saddle bags |
Factory warranty
|
Three years transferable, unlimited-mileage limited warranty |
Comments
|
Model ID: ST1300A |
