General information |
Motorcycle name
|

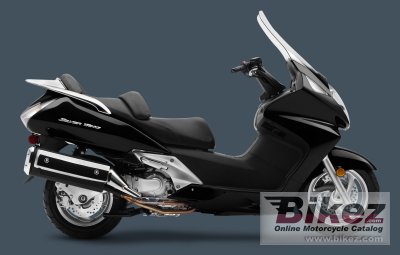

Honda Silver Wing ABS |
Year of manufacture
|
2012 |
Type
|
Scooter |
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
582.0 ccm (35.51 cubic inches) |
Type of engine
|
Twin, four-stroke |
Compression
|
10.2:1 |
Bore x stroke
|
72.0 x 71.5 mm (2.8 x 2.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Programmed Fuel Injection (PGM-FI) with automatic enricher circuit, four-hole injectors |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Computer-controlled fully transistorized with electronic advance |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Fuel consumption
|
5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
Greenhouse gases
|
118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
Emission details
|
Meets current California Air Resources Board (CARB) and EPA standards. |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
26.8° |
Trail
|
103 mm (4.1 inches) |
Front suspension
|
41mm hydraulic fork |
Front wheel travel
|
107 mm (4.2 inches) |
Rear suspension
|
Swingarm with dual hydraulic shocks with five-position spring-preload adjustability |
Rear wheel travel
|
114 mm (4.5 inches) |
Front tire
|
120/80-14 |
Rear tire
|
150/70-13 |
Front brakes
|
Single disc. CBS three-piston caliper |
Diameter
|
276 mm (10.9 inches) |
Rear brakes
|
Single disc. CBS twin-piston caliper |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
249.9 kg (551.0 pounds) |
Seat height
|
754 mm (29.7 inches) If adjustable, lowest setting. |
Wheelbase
|
1600 mm (63.0 inches) |
Fuel capacity
|
15.90 litres (4.20 US gallons) |
Other specifications |
Color options
|
Black |
Starter
|
Electric |
Factory warranty
|
One year. Unlimited milage. Transferable. |
Comments
|
Model ID: FSC600A |
