General information |
Model name
|

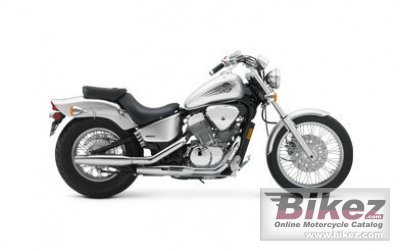

Honda Shadow VLX Deluxe |
Year
|
2006 |
Category
|
Custom / cruiser |
Price as new | US$ 5699. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
583.0 ccm (35.57 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
75.0 x 66.0 mm (3.0 x 2.6 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor. 34mm diaphragm-type CV |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
Cooling system
|
Liquid |
Gearbox
|
4-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
35.0° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
39mm fork |
Front wheel travel
|
145 mm (5.7 inches) |
Rear suspension
|
Single-shock with seven-position spring-preload adjustability |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
100/90-19 |
Rear tire
|
170/80-15 |
Front brakes
|
Single disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
207.7 kg (458.0 pounds) |
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
Wheelbase
|
1600 mm (63.0 inches) |
Fuel capacity
|
10.97 litres (2.90 US gallons) |
Other specifications |
Color options
|
Candy Dark Red, Light Silver Metallic |
Starter
|
Electric |
Comments
|
Model ID: VTX600CD |
