General information |
|
Model name
|

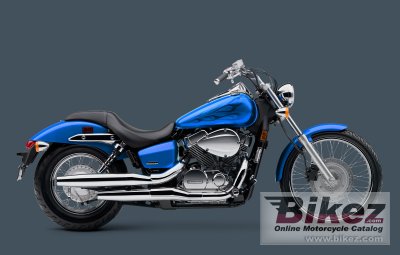

Honda Shadow Spirit 750 |
|
Year model
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 8240. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
745.0 ccm (45.46 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
52 degrees V-twin |
|
Torque
|
79.0 Nm (8.1 kgf-m or 58.3 ft.lbs) |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Injection. PGM-FI with automatic enrichment, one 34mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Emission details
|
Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
158 mm (6.2 inches) |
|
Front suspension
|
41.0mm fork |
|
Front wheel travel
|
114 mm (4.5 inches) |
|
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Double disc. Twin-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
243.1 kg (536.0 pounds) |
|
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1656 mm (65.2 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Black, Ultra Blue Metallic Flame |
|
Factory warranty
|
One year. Unlimited milage. Transferable. |
|
Comments
|
Model ID: VT750C2 |
| Update specs | Report missing specs or required updates. |
|
