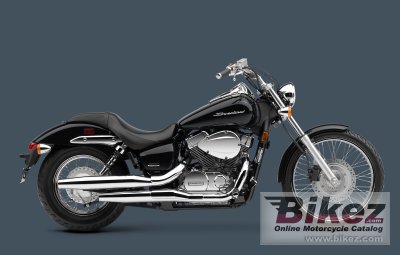

Honda Shadow Spirit 750 20122012 Honda Shadow Spirit 750 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Sit on a Shadow Spirit 750 and we know what you’re going to think: “This is the perfect bike for me.” And no wonder: The Spirit 750 combines style, performance, comfort, and Honda technology all into a sporty cruiser package. |
| General information | |
|---|---|
| Motorcycle name | Honda Shadow Spirit 750 |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Price as new | US$ 8250. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 745.0 ccm (45.46 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 52 degree V-twin |
| Output | 43.0 HP (31.4 kW)) @ 5500 RPM |
| Torque | 65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. PGM-FI with automatic enrichment, one 34mm throttle body |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.0° |
| Trail | 158 mm (6.2 inches) |
| Front suspension | 41.0mm fork |
| Front wheel travel | 114 mm (4.5 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 90/90-21 |
| Rear tire | 160/80-15 |
| Front brakes | Single disc. Twin-piston caliper |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 243.1 kg (536.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1656 mm (65.2 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Candy Orange Flame, Black |
| Factory warranty | One year. Transferable. Unlimited milage. |
| Comments | Model ID: VT750C2 |
