Honda Shadow Spirit 750 20092009 Honda Shadow Spirit 750 specifications, pictures, reviews and rating |

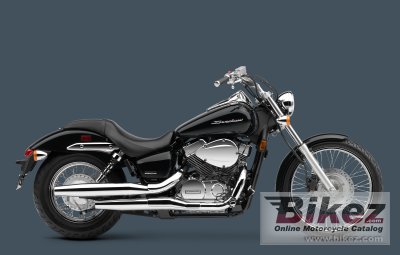

2009 Honda Shadow Spirit 750. Image credits - Honda.
| Honda's profilation of this bike |
| The Shadow Spirit 750´s style is classic cruiser. But with a sportier attitude. |
| General information | |
|---|---|
| Motorcycle name | Honda Shadow Spirit 750 |
| Model year | 2009 |
| Category | Custom / cruiser |
| Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 745.0 ccm (45.46 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.6:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. Single 34.0mm CV type |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.0° |
| Trail | 158 mm (6.2 inches) |
| Front suspension | 41.0mm fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 90/90-21 |
| Rear tire | 160/80-15 |
| Front brakes | Double disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 243.1 kg (536.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1651 mm (65.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Candy Dark Red/Metallic Silver, Pearl White/Silver Pinstripe, Pearl Black/Red Pinstripe, Black |
| Comments | Model ID: VT750C2 |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Honda Shadow Spirit 750 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
