General information |
Model name
|

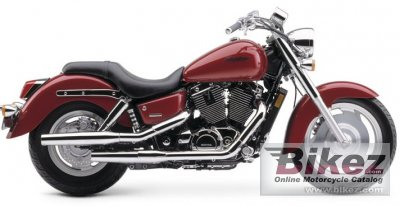

Honda Shadow Sabre |
Year model
|
2004 |
Type
|
Custom / cruiser |
Price as new | US$ 8299. MSRP depends on country, taxes, accessories, etc. |
Rating
|
4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1099.0 ccm (67.06 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
8.0:1 |
Bore x stroke
|
87.5 x 91.4 mm (3.4 x 3.6 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
32.6° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
41mm fork. |
Front wheel travel
|
119 mm (4.7 inches) |
Rear suspension
|
Dual shocks with five-position spring-preload adjustability. |
Rear wheel travel
|
99 mm (3.9 inches) |
Front tire
|
120/90-18 |
Rear tire
|
170/80-15 |
Front brakes
|
Single disc |
Diameter
|
316 mm (12.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
276 mm (10.9 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
265.0 kg (584.2 pounds) |
Seat height
|
691 mm (27.2 inches) If adjustable, lowest setting. |
Wheelbase
|
1641 mm (64.6 inches) |
Fuel capacity
|
15.89 litres (4.20 US gallons) |
Reserve fuel capacity
|
2.27 litres (0.60 US gallons) |
Oil capacity
|
3.10 litres (3.28 US quarts) |
Other specifications |
Color options
|
Candy Red, Black Flame, Pearl Purple Flame |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Oil filter
|
HiFloFiltro HF303RC |
Brake fluid
|
DOT 4 |
Coolant
|
3.00 litres (0.79 US gallons) |
Battery
|
YTX14-BS |
Spark plugs
|
DPR7EA9 |
Idle speed
|
1000 +/- 100 RPM |
Tire pressure front
|
33 PSI (2.3 Bar or 225 kPa) |
Tire pressure rear
|
33 PSI (2.3 Bar or 225 kPa) |
Fork tube size
|
41 mm (1.6 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
