Honda's profilation of this bike |
Yep, believe your eyes—those are higher-set footpegs and shorter, more upright bars. So, how can this be a Shadow cruiser, you ask? Oh it’s all Shadow, just with a heavy dose of old-school roadster thrown in—you don’t have to look too hard to see the classic flat-track influences in the peanut-shaped fuel tank and flatter seat. |
General information |
Motorcycle name
|

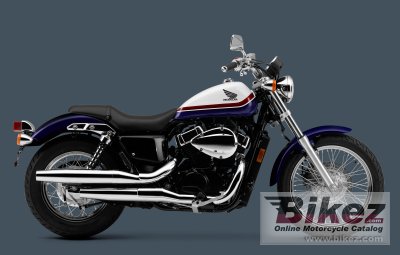

Honda Shadow RS |
Year of manufacture
|
2011 |
Type
|
Classic |
Rating
|
3.5 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
745.0 ccm (45.46 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Valves per cylinder
|
3 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
O-ring-sealed chain |
Emission details
|
Meets current EPA standards. 50-state version meets current CARB standards and may differ slightly due to emissions equipment. |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
32.3° |
Trail
|
134 mm (5.3 inches) |
Front suspension
|
41mm fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
100/90-19 |
Rear tire
|
150/80-16 |
Front brakes
|
Double disc. Two-piston calipers |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake). Sigle piston |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
230.0 kg (507.0 pounds) |
Seat height
|
747 mm (29.4 inches) If adjustable, lowest setting. |
Wheelbase
|
1562 mm (61.5 inches) |
Fuel capacity
|
10.60 litres (2.80 US gallons) |
Other specifications |
Color options
|
Blue White Red |
Starter
|
Electric |
Factory warranty
|
Transferable one-year unlimited-mileage limited warranty |
Comments
|
Model ID: VT750RS |
