Honda Shadow Phantom 2013


2013 Honda Shadow Phantom specifications, pictures, reviews and rating

2013 Honda Shadow Phantom

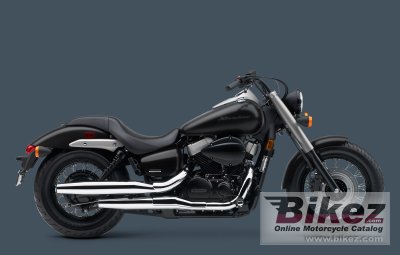

2013 Honda Shadow Phantom. Picture credits - Honda. Submit more pictures.

   Show big 2013 Honda Shadow Phantom picture
2013 Honda Shadow Phantom
Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Tip a friend
List related bikes


Honda's profilation of this bike
The first time you lay eyes on the Shadow Phantom, it’s impossible to keep yourself from staring. Gawking, really. And wishing you had one in your garage. After all, this is the most unique Shadow we’ve ever made, an utterly stunning head-turner with its blacked-out 745cc V-twin engine and black rims sporting matte silver highlights, bobbed fenders, spoke wheels, and beefy front forks.

General information
Model:Honda Shadow Phantom
Year:2013
Category:Custom / cruiser
Rating:63.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 23990. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:745.00 ccm (45.46 cubic inches)
Engine type:V2, four-stroke
Engine details:52 degrees V-twin
Compression:9.6:1
Bore x stroke:79.0 x 76.0 mm (3.1 x 3.0 inches)
Valves per cylinder:3
Fuel system:Injection. PGM-FI with automatic enrichment circuit, one 34mm throttle body
Fuel control:Single Overhead Cams (SOHC)
Ignition:Digital with 3-D mapping, two spark plugs per cylinder
Cooling system:Liquid
Gearbox:5-speed
Transmission type,
final drive:
Shaft drive (cardan)
Fuel consumption:4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Greenhouse gases:97.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Emission details:Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Chassis, suspension, brakes and wheels
Rake (fork angle):34.0°
Trail:161 mm (6.3 inches)
Front suspension:41mm fork
Front wheel travel:117 mm (4.6 inches)
Rear suspension:Dual shocks with five-position spring-preload adjustability
Rear wheel travel:89 mm (3.5 inches)
Front tyre:120/90-17
Rear tyre:160/80-15
Front brakes:Double disc. Two-piston calipers.
Front brakes diameter:296 mm (11.7 inches)
Rear brakes:Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc:249.0 kg (549.0 pounds)
Seat height:655 mm (25.8 inches) If adjustable, lowest setting.
Wheelbase:1,641 mm (64.6 inches)
Fuel capacity:14.00 litres (3.70 gallons)
Reserve fuel capacity:3.41 litres (0.90 gallons)
Other specifications
Color options:Matte Black Metallic
Starter:Electric
Factory warranty:One year. Unlimited milage. Transferable.
Comments:Model ID: VT750C2B
