General information |
|
Model
|

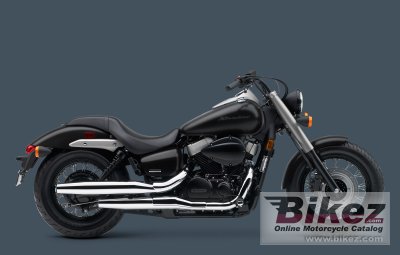

Honda Shadow Phantom |
|
Year model
|
2012 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 8250. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
745.0 ccm (45.46 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
52 degree V-twin |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital with 3-D mapping, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet multiplate |
|
Fuel consumption
|
4.20 litres/100 km (23.8 km/l or 56.00 mpg) |
|
Greenhouse gases
|
97.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
161 mm (6.3 inches) |
|
Front suspension
|
41mm fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
120/90-17 |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Single disc. Twin-piston caliper |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
249.0 kg (549.0 pounds) |
|
Seat height
|
655 mm (25.8 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1641 mm (64.6 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Matte Black Metallic |
|
Starter
|
Electric |
|
Factory warranty
|
One year. Transferable. Unlimited mileage. |
|
Comments
|
Model ID: VT750C2B |
