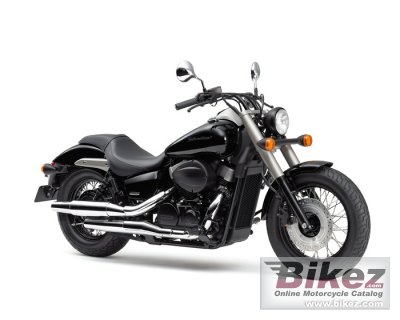

Honda Shadow Phantom 20112011 Honda Shadow Phantom specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The first time you lay eyes on the Shadow Phantom, it’s impossible to keep yourself from staring. Gawking, really. And wishing you had one in your garage. After all, this is the most unique Shadow we’ve ever made, an utterly stunning head-turner with its blacked-out 745cc V-twin engine and black rims sporting matte silver highlights, bobbed fenders, spoke wheels, and beefy front forks. |
| General information | |
|---|---|
| Model | Honda Shadow Phantom |
| Model year | 2011 |
| Category | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 745.0 ccm (45.46 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.6:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorized w/ electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.0° |
| Trail | 161 mm (6.3 inches) |
| Front suspension | 41mm fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 120/90-17 |
| Rear tire | 160/80-15 |
| Front brakes | Single disc. Two-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake). Sigle piston |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 249.0 kg (549.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1638 mm (64.5 inches) |
| Fuel capacity | 14.76 litres (3.90 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Factory warranty | Transferable, 1 year unlimited-mileage limited warranty; |
| Comments | Model ID: VT750C2B |
