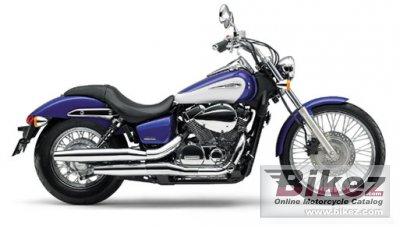

Honda Shadow Custom 400 20112011 Honda Shadow Custom 400 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Exhilarating cruising. Comfort and freedom to unleash your mind to start running long distance. |
| General information | |
|---|---|
| Model | Honda Shadow Custom 400 |
| Year of manufacture | 2011 |
| Type | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 398.0 ccm (24.29 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 33.0 Nm (3.4 kgf-m or 24.3 ft.lbs) @ 3500 RPM |
| Compression | 10.3:1 |
| Bore x stroke | 64.0 x 62.0 mm (2.5 x 2.4 inches) |
| Fuel system | Injection. PGM-FI |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Full transistor type battery ignition |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.5° |
| Trail | 158 mm (6.2 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Swing arm |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 90/90-21 |
| Rear tire | 160/80-15 |
| Front brakes | Single disc. Hyulic |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake). Sigle piston |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 255.0 kg (562.2 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2510 mm (98.8 inches) |
| Overall width | 920 mm (36.2 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1640 mm (64.6 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Marine/white |
| Starter | Electric |
| Comments | Sold in the Asian market. |
