Honda Shadow Classic 400 20132013 Honda Shadow Classic 400 specifications, pictures, reviews and rating |

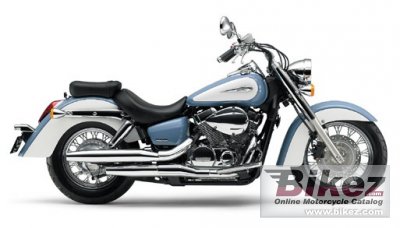

 2013 Honda Shadow Classic 400. Picture credits - Honda. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Honda Shadow Classic 400 |
| Year of manufacture | 2013 |
| Type | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 398.0 ccm (24.29 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 30.8 HP (22.5 kW)) @ 7000 RPM |
| Torque | 33.0 Nm (3.4 kgf-m or 24.3 ft.lbs) @ 3500 RPM |
| Compression | 10.3:1 |
| Bore x stroke | 64.0 x 62.0 mm (2.5 x 2.4 inches) |
| Fuel system | Injection. PGM-FI |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiplate |
| Fuel consumption | 2.50 litres/100 km (40.0 km/l or 94.09 mpg) |
| Greenhouse gases | 58.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.0° |
| Trail | 161 mm (6.3 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Swing arm |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 120/90-17 |
| Rear tire | 160/80-15 |
| Front brakes | Single disc. Two-piston calipers, hydraulic |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 180 mm (7.1 inches) |
| Seat | Two person seat |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 255.0 kg (562.2 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2510 mm (98.8 inches) |
| Overall width | 920 mm (36.2 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1640 mm (64.6 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Blue/white |
| Starter | Electric |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
