General information |
Motorcycle name
|

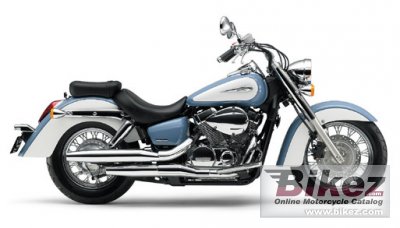

Honda Shadow Classic 400 |
Year
|
2011 |
Category
|
Custom / cruiser |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
398.0 ccm (24.29 cubic inches) |
Engine type
|
V2, four-stroke |
Torque
|
33.0 Nm (3.4 kgf-m or 24.3 ft.lbs) @ 3500 RPM |
Compression
|
10.3:1 |
Bore x stroke
|
64.0 x 62.0 mm (2.5 x 2.4 inches) |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Wet, multiplate |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
34.0° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
Telescopic fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
Swing arm |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
120/90-17 |
Rear tire
|
160/80-15 |
Front brakes
|
Single disc. Two-piston calipers |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake). Sigle piston |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
255.0 kg (562.2 pounds) |
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
Overall height
|
1125 mm (44.3 inches) |
Overall length
|
2510 mm (98.8 inches) |
Overall width
|
920 mm (36.2 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1640 mm (64.6 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Blue/white |
Starter
|
Electric |
