General information |
Model name
|

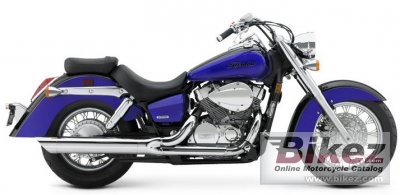

Honda Shadow Aero |
Year model
|
2005 |
Type
|
Custom / cruiser |
Price as new | US$ 6299. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
745.0 ccm (45.46 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor. Single 34.0mm CV type |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance, two spark plugs per cylinder |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
32.7° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
41.0mm fork |
Front wheel travel
|
117 mm (4.6 inches) |
Rear suspension
|
Dual shocks with five-position spring preload adjustability; |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
120/90-17 |
Rear tire
|
160/80-15 |
Front brakes
|
Single disc. 2-piston calipers. |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Dry weight
|
235.6 kg (519.4 pounds) |
Seat height
|
658 mm (25.9 inches) If adjustable, lowest setting. |
Wheelbase
|
1638 mm (64.5 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Black, Candy Red, Black/Candy Red, Black/Metallic Silver, Black/Pearl Blue, Metallic Silver/Pearl White |
Starter
|
Electric |
Comments
|
Model ID: VT750 |
