General information |
Model
|

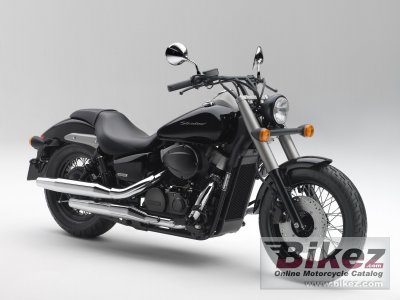

Honda Shadow 750 Black Spirit |
Model year
|
2010 |
Category
|
Custom / cruiser |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
745.0 ccm (45.46 cubic inches) |
Engine type
|
V2, four-stroke |
Power output
|
44.9 HP (32.8 kW)) @ 5500 RPM |
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 3500 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Fuel system
|
Injection. PGM-FI electronic fuel injection with automatic choke |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Fully transistorised electronic |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
41mm telescopic fork, 117mm axle travel |
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring preload, 90mm axle travel |
Front tire
|
90/90-M21 |
Rear tire
|
160/80-M15 |
Front brakes
|
Single disc |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Dry weight
|
251.0 kg (553.4 pounds) |
Power/weight ratio
|
0.1790 HP/kg |
Seat height
|
652 mm (25.7 inches) If adjustable, lowest setting. |
Overall height
|
1089 mm (42.9 inches) |
Overall length
|
2395 mm (94.3 inches) |
Overall width
|
835 mm (32.9 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1639 mm (64.5 inches) |
Fuel capacity
|
14.60 litres (3.86 US gallons) |
Other specifications |
Color options
|
Black |
Starter
|
Electric |
