Honda Shadow 125 20062006 Honda Shadow 125 specifications, pictures, reviews and rating |

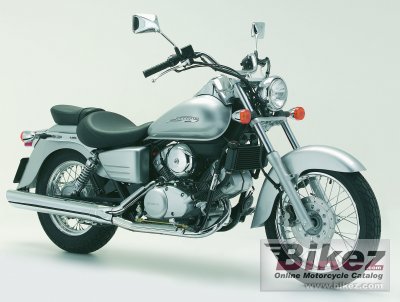

 2006 Honda Shadow 125. Picture credits - Honda. Submit more pictures.
|
|
| Honda's profilation of this bike |
| The fun and friendly Shadow 125 is the most full featured and satisfying American Classic cruiser in the entire 125cc class. With the looks, styling and proportions of a larger machine, its light and comfortable feel gives riders of all experience levels greater ease and confidence on the move to maximise riding enjoyment. Its low saddle-type seat, wide pull-back bars and forward-mounted pegs provide a comfortably laid-back riding position and a delightfully easy reach to the ground. |
| General information | |
|---|---|
| Model | Honda Shadow 125 |
| Year of manufacture | 2006 |
| Type | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 14.8 HP (10.8 kW)) @ 11000 RPM |
| Torque | 10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 8500 RPM |
| Compression | 11.8:1 |
| Bore x stroke | 42.0 x 45.0 mm (1.7 x 1.8 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Dual digital transistorised with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate with coil springs |
| Chassis, suspension, brakes and wheels | |
| Trail | 122 mm (4.8 inches) |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 146.0 kg (321.9 pounds) |
| Power/weight ratio | 0.1010 HP/kg |
| Seat height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1530 mm (60.2 inches) |
| Fuel capacity | 14.50 litres (3.83 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Honda Shadow 125 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2006 Honda Shadow 125 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Design and look for the 2006 Honda Shadow 125:  (81.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
