Honda Shadow 125 20022002 Honda Shadow 125 specifications, pictures, reviews and rating |

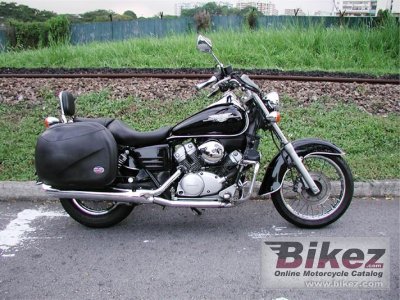

2002 Honda Shadow 125. Picture credits - Isaac Chan. Submit more pictures. |
General information | |
---|---|
Motorcycle name | Honda Shadow 125 |
Year | 2002 |
Category | Custom / cruiser |
Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission | |
Displacement | 125.0 ccm (7.63 cubic inches) |
Engine type | V2, four-stroke |
Power | 15.0 HP (10.9 kW)) @ 11000 RPM |
Torque | 10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 9000 RPM |
Compression | 11.8:1 |
Bore x stroke | 42.0 x 45.0 mm (1.7 x 1.8 inches) |
Valves per cylinder | 2 |
Gearbox | 5-speed |
Transmission type | Chain (final drive) |
Chassis, suspension, brakes and wheels | |
Front wheel travel | 110 mm (4.3 inches) |
Rear wheel travel | 80 mm (3.1 inches) |
Front tire | 110/90-17 55P |
Rear tire | 130/90-15M/C 66P |
Front brakes | Single disc |
Diameter | 240 mm (9.4 inches) |
Rear brakes | Expanding brake |
Diameter | 130 mm (5.1 inches) |
Physical measures and capacities | |
Dry weight | 145.0 kg (319.7 pounds) |
Power/weight ratio | 0.1034 HP/kg |
Seat height | 680 mm (26.8 inches) If adjustable, lowest setting. |
Overall height | 1110 mm (43.7 inches) |
Overall length | 2300 mm (90.6 inches) |
Overall width | 890 mm (35.0 inches) |
Ground clearance | 145 mm (5.7 inches) |
Wheelbase | 1530 mm (60.2 inches) |
Fuel capacity | 14.50 litres (3.83 US gallons) |
Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
Other specifications | |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 02 Honda Shadow 125 discussion group or the general Honda discussion group. |
Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2002 Honda Shadow 125 or advertise any other MC for sale. You can list all 2002 Honda Shadow 125 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
Rating sample for this Honda bike | |
Value for money for the 2002 Honda Shadow 125: (84.4 out of 100) Click here for complete rating. You can also compare bikes. |
