Honda SH 125i 20062006 Honda SH 125i specifications, pictures, reviews and rating |

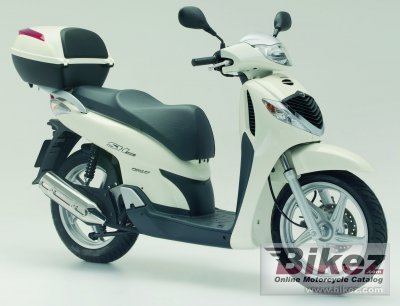

 2006 Honda SH 125i. Picture credits - Honda. Submit more pictures.
|
|
| Honda's profilation of this bike |
| One of the most popular scooters of any type in its displacement class, the swift and stylish SH125i (and its larger-displacement version, the SH150i) features sleek, cosmopolitan lines, spacious riding proportions and ample carrying capacity in a distinctive ‘big wheel’ scooter design that makes cross-town errands and daily commutes a delight. |
| General information | |
|---|---|
| Model | Honda SH 125i |
| Model year | 2006 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 12.7 HP (9.3 kW)) @ 9000 RPM |
| Torque | 11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Clutch | Automatic, centrifugal |
| Chassis, suspension, brakes and wheels | |
| Frame type | Underbone, steel tube |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 127.0 kg (280.0 pounds) |
| Power/weight ratio | 0.1002 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Ground clearance | 149 mm (5.9 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Honda SH 125i discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2006 Honda SH 125i for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Offroad capabilities for the 2006 Honda SH 125i:  (40.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
