Honda SH 125 20022002 Honda SH 125 specifications, pictures, reviews and rating |

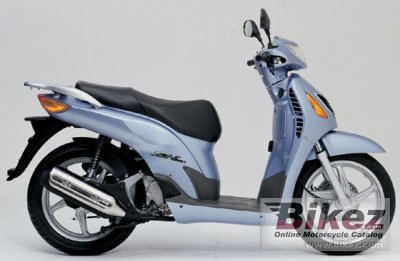

 2002 Honda SH 125. Picture submitted by anonymous user.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Honda SH 125 |
| Year model | 2002 |
| Type | Scooter |
| Rating | 4.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 13.8 HP (10.1 kW)) @ 9000 RPM |
| Torque | 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Fuel consumption | 3.42 litres/100 km (29.2 km/l or 68.78 mpg) |
| Greenhouse gases | 79.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear wheel travel | 70 mm (2.8 inches) |
| Front tire | 100/80-16 50L |
| Rear tire | 120/80-16 60L |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 123.1 kg (271.4 pounds) |
| Power/weight ratio | 0.1121 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1145 mm (45.1 inches) |
| Overall length | 2020 mm (79.5 inches) |
| Overall width | 705 mm (27.8 inches) |
| Ground clearance | 126 mm (5.0 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 8.30 litres (2.19 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda SH 125 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda SH 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Design and look for the 2002 Honda SH 125:  (72.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
