General information |
Model
|

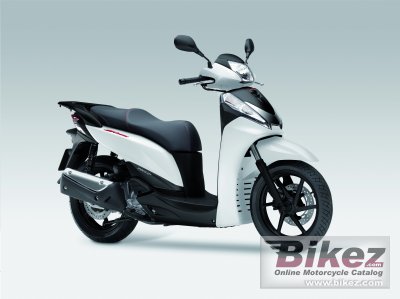

Honda SH300i |
Year
|
2012 |
Category
|
Scooter |
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
279.1 ccm (17.03 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power
|
26.8 HP (19.6 kW)) @ 8250 RPM |
Torque
|
26.0 Nm (2.7 kgf-m or 19.2 ft.lbs) @ 6000 RPM |
Compression
|
10.5:1 |
Bore x stroke
|
72.0 x 68.5 mm (2.8 x 2.7 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorised with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-matic |
Chassis, suspension, brakes and wheels |
Front suspension
|
35mm telescopic fork |
Front wheel travel
|
102 mm (4.0 inches) |
Rear suspension
|
Dual-damper unit swingarm |
Rear wheel travel
|
95 mm (3.7 inches) |
Front tire
|
110/70-(16 |
Rear tire
|
130/70-(16 |
Front brakes
|
Single disc. Triple-piston calliper, drilled rotor (ABS) and sintered metal pads |
Diameter
|
256 mm (10.1 inches) |
Rear brakes
|
Single disc. Single-piston calliper, drilled rotor (ABS) and sintered metal pads |
Diameter
|
256 mm (10.1 inches) |
Wheels
|
U-section 6-spoke cast aluminium,16 x MT2.75 |
Physical measures and capacities |
Dry weight
|
161.8 kg (356.7 pounds) |
Power/weight ratio
|
0.1658 HP/kg |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall height
|
1220 mm (48.0 inches) |
Overall length
|
2100 mm (82.7 inches) |
Overall width
|
730 mm (28.7 inches) |
Wheelbase
|
1420 mm (55.9 inches) |
Fuel capacity
|
9.00 litres (2.38 US gallons) |
Other specifications |
Color options
|
Light blue, blue, white, black |
Starter
|
Electric |
Comments
|
Optional ABS. 3kg more weight. |
