General information |
|
Model name
|

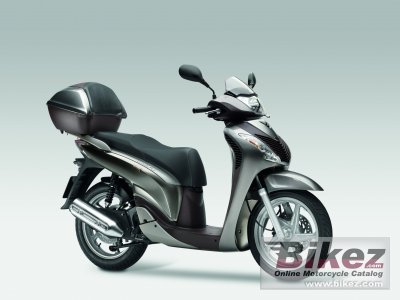

Honda SH150i Special |
|
Year model
|
2011 |
|
Type
|
Scooter |
|
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
153.0 ccm (9.34 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
15.6 HP (11.4 kW)) @ 8500 RPM |
|
Torque
|
14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 7000 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
58.0 x 57.8 mm (2.3 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal |
|
Driveline
|
V-belt |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
85 mm (3.3 inches) |
|
Front suspension
|
33mm telescopic fork |
|
Front wheel travel
|
89 mm (3.5 inches) |
|
Rear suspension
|
Dual damper unit swingarm |
|
Rear wheel travel
|
83 mm (3.3 inches) |
|
Front tire
|
100/80-16 |
|
Rear tire
|
120/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
U-section 5-spoke cast aluminium |
|
Physical measures and capacities |
|
Dry weight
|
129.0 kg (284.4 pounds) |
|
Weight incl. oil, gas, etc
|
136.0 kg (299.8 pounds) |
|
Power/weight ratio
|
0.1206 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1230 mm (48.4 inches) |
|
Overall length
|
2025 mm (79.7 inches) |
|
Overall width
|
728 mm (28.7 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1335 mm (52.6 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Champagne Bronze Metallic/Castagna Brown R |
|
Starter
|
Electric |
|
Electrical
|
12V/6AH battery. 300W alternator. |
|
Light
|
Headlights 55W/60W |
