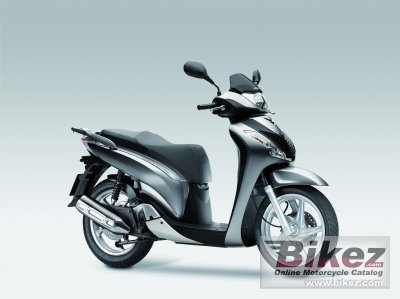

Honda SH125i Special 20122012 Honda SH125i Special specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The overwhelmingly popular SH125i offers unrivalled practicality, comfort and safety. With a low seat height, generous legroom and a colour matched top box fitted as standard, the SH125i is the ultimate feel-good transport, and the best loved scooter across Europe. |
| General information | |
|---|---|
| Motorcycle name | Honda SH125i Special |
| Year model | 2012 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 13.0 HP (9.5 kW)) @ 9000 RPM |
| Torque | 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. PGM-FI |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal |
| Driveline | V-belt |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic fork, 90mm travel |
| Rear suspension | Dual damper unit swingarm, 82mm axle travel |
| Front tire | 100/80-16 |
| Rear tire | 120/80-16 |
| Front brakes | Single disc. Hydraulic disc with combined three-piston caliper, drilled rotor and resin mould pads |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Wheels | U-section 5-spoke cast aluminium |
| Physical measures and capacities | |
| Dry weight | 120.0 kg (264.6 pounds) |
| Weight incl. oil, gas, etc | 136.0 kg (299.8 pounds) |
| Power/weight ratio | 0.1083 HP/kg |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1140 mm (44.9 inches) |
| Overall length | 2025 mm (79.7 inches) |
| Overall width | 728 mm (28.7 inches) |
| Ground clearance | 149 mm (5.9 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Starter | Electric |
| Electrical | 12V/6AH battery. 300W alternator. |
