General information |
Model
|

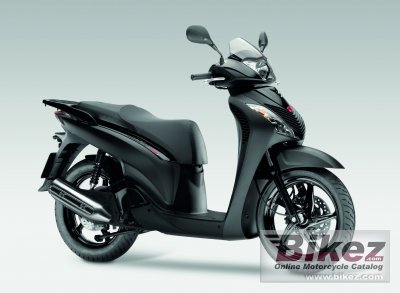

Honda SH125i |
Year
|
2010 |
Category
|
Scooter |
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
125.0 ccm (7.63 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power
|
13.0 HP (9.5 kW)) @ 9000 RPM |
Torque
|
11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
Fuel system
|
Injection. PGM-FI electronic fuel injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorised with electronic advance |
Cooling system
|
Liquid |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
33mm telescopic fork, 90mm axle travel |
Rear suspension
|
Dual damper unit swingarm, 82mm axle travel |
Front tire
|
100/80-16 |
Rear tire
|
120/80-16 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
130 mm (5.1 inches) |
Physical measures and capacities |
Dry weight
|
120.0 kg (264.6 pounds) |
Power/weight ratio
|
0.1083 HP/kg |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Overall height
|
1140 mm (44.9 inches) |
Overall length
|
2020 mm (79.5 inches) |
Overall width
|
700 mm (27.6 inches) |
Ground clearance
|
149 mm (5.9 inches) |
Wheelbase
|
1335 mm (52.6 inches) |
Fuel capacity
|
7.50 litres (1.98 US gallons) |
Other specifications |
Color options
|
Red, blue, black, white, silver |
Starter
|
Electric |
