General information |
Motorcycle name
|

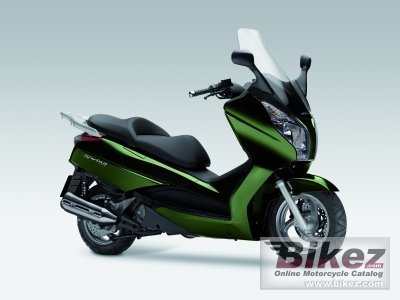

Honda S-Wing 125 C-ABS |
Year model
|
2011 |
Type
|
Scooter |
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
125.0 ccm (7.63 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
13.0 HP (9.5 kW)) @ 9000 RPM |
Torque
|
11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
Fuel system
|
Injection. PGM-FI electronic fuel injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorised with electronic advance |
Cooling system
|
Liquid |
Transmission type
|
Belt (final drive) |
Driveline
|
V-belt |
Chassis, suspension, brakes and wheels |
Front suspension
|
33mm telescopic fork, 85.7mm axle travel |
Rear suspension
|
Dual-damper unit swingarm, 98.1mm axle travel |
Front tire
|
110/90-M13 |
Rear tire
|
130/70-M12 |
Front brakes
|
Single disc. Anti-lock braking |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc. Anti-lock braking |
Diameter
|
220 mm (8.7 inches) |
Wheels
|
Triple-spoke cast aluminium |
Physical measures and capacities |
Dry weight
|
160.0 kg (352.7 pounds) |
Power/weight ratio
|
0.0813 HP/kg |
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
Overall length
|
2090 mm (82.3 inches) |
Overall width
|
745 mm (29.3 inches) |
Ground clearance
|
134 mm (5.3 inches) |
Wheelbase
|
1490 mm (58.7 inches) |
Fuel capacity
|
9.40 litres (2.48 US gallons) |
