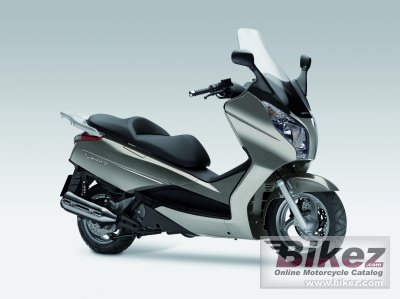

Honda S-Wing 125 20122012 Honda S-Wing 125 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The S-Wing 125 is a commuter with elegant styling and a strong accent on quality. The low, stepped seat provides a comfortable ride for both rider and passenger. Underneath the seat, there´s a large, lockable carrying compartment that can easily hold a briefcase or a full-face helmet. |
| General information | |
|---|---|
| Motorcycle name | Honda S-Wing 125 |
| Year | 2012 |
| Category | Scooter |
| Rating | 3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 13.0 HP (9.5 kW)) @ 9000 RPM |
| Torque | 11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Driveline | V-belt |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic fork, 85.7mm axle travel |
| Rear suspension | Dual-damper unit swingarm, 98.1mm axle travel |
| Front tire | 110/90-M13 |
| Rear tire | 130/70-M12 |
| Front brakes | Single disc. Combined three-piston calliper, drilled rotor and sintered metal pads. Optional ABS. |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc. Single-piston calliper, Combined Brake system and resin mould pads. Optional ABS |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Triple-spoke cast aluminium |
| Physical measures and capacities | |
| Dry weight | 156.0 kg (343.9 pounds) |
| Power/weight ratio | 0.0834 HP/kg |
| Seat height | 776 mm (30.6 inches) If adjustable, lowest setting. |
| Overall length | 2090 mm (82.3 inches) |
| Ground clearance | 134 mm (5.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 9.40 litres (2.48 US gallons) |
| Other specifications | |
| Color options | Grey, black, white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Honda S-Wing 125 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
