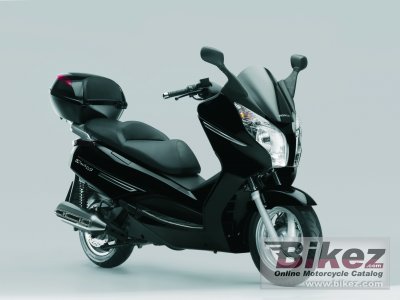

Honda S-Wing 125 20112011 Honda S-Wing 125 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Proudly cosmopolitan and styled for the business of urban transit, the distinctive S-Wing combines comfort, convenience and urban élan in an executive class scooter that refuses to blend in. With its distinctive front cowl design deflecting the wind, the S-Wing lets you cruise the avenues in blissful comfort. Its clean, quiet and powerful engine carries you across town in a flash, yet with minimised emissions that are easy on the environment. |
| General information | |
|---|---|
| Model name | Honda S-Wing 125 |
| Model year | 2011 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 13.0 HP (9.5 kW)) @ 9000 RPM |
| Torque | 11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Driveline | V-belt |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic fork, 85.7mm axle travel |
| Rear suspension | Dual-damper unit swingarm, 98.1mm axle travel |
| Front tire | 110/90-M13 |
| Rear tire | 130/70-M12 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Triple-spoke cast aluminium |
| Physical measures and capacities | |
| Dry weight | 156.0 kg (343.9 pounds) |
| Power/weight ratio | 0.0834 HP/kg |
| Seat height | 776 mm (30.6 inches) If adjustable, lowest setting. |
| Overall height | 1435 mm (56.5 inches) |
| Overall length | 2090 mm (82.3 inches) |
| Overall width | 745 mm (29.3 inches) |
| Ground clearance | 134 mm (5.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 9.40 litres (2.48 US gallons) |
| Other specifications | |
| Starter | Electric |
