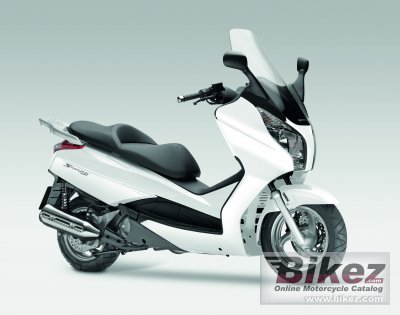

Honda S-Wing 125 20102010 Honda S-Wing 125 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| ts clean, quiet and powerful engine carries you across town in a flash, yet with minimised emissions that are easy on the environment. Even the S-Wing?s stopping power is tops in its class, with Combined disc brakes providing an ideal balance of control. |
| General information | |
|---|---|
| Model | Honda S-Wing 125 |
| Year of manufacture | 2010 |
| Type | Scooter |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 13.0 HP (9.5 kW)) @ 9000 RPM |
| Torque | 11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.8 mm (2.1 x 2.3 inches) |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital transistorised with electronic advance |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic fork, 85.7mm axle travel |
| Rear suspension | Dual-damper unit swingarm, 98.1mm axle travel |
| Front tire | 110/90-M13 |
| Rear tire | 130/70-M12 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 156.0 kg (343.9 pounds) |
| Power/weight ratio | 0.0834 HP/kg |
| Seat height | 776 mm (30.6 inches) If adjustable, lowest setting. |
| Overall height | 1435 mm (56.5 inches) |
| Overall length | 2090 mm (82.3 inches) |
| Overall width | 745 mm (29.3 inches) |
| Ground clearance | 134 mm (5.3 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 9.40 litres (2.48 US gallons) |
| Other specifications | |
| Color options | Red, black, silver, white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
