General information |
|
Model
|

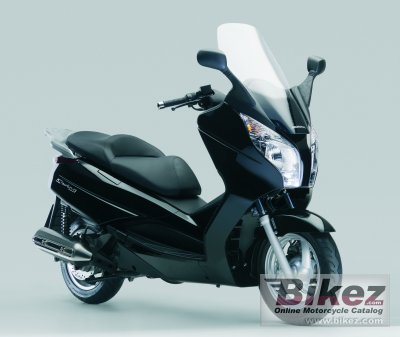

Honda S-Wing 125 |
|
Year of manufacture
|
2009 |
|
Type
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
13.0 HP (9.5 kW)) @ 9000 RPM |
|
Torque
|
11.1 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
33mm telescopic fork, 85.7mm axle travel |
|
Rear suspension
|
Dual-damper unit swingarm, 98.1mm axle travel |
|
Front tire
|
110/90-M13 |
|
Rear tire
|
130/70-M12 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
156.0 kg (343.9 pounds) |
|
Power/weight ratio
|
0.0833 HP/kg |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1435 mm (56.5 inches) |
|
Overall length
|
2090 mm (82.3 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Ground clearance
|
134 mm (5.3 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
9.40 litres (2.48 US gallons) |
|
Other specifications |
|
Color options
|
Black, gray, silver |
|
Starter
|
Electric |
