General information |
Model name
|

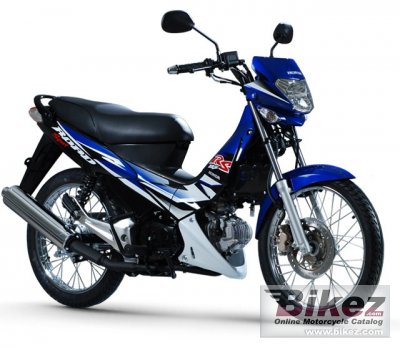

Honda RS 125 |
Year of manufacture
|
2013 |
Type
|
Scooter |
Rating
|
3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.8 ccm (7.62 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
9.4 HP (6.9 kW)) @ 7500 RPM |
Torque
|
10.4 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 5000 RPM |
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
DC-CDI (Capacitor Discharge Ignition) |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Rear suspension
|
Twin shocks |
Front tire
|
2.50-17 |
Rear tire
|
2.50-17 |
Front brakes
|
Single disc. Hydraulic, ventilated |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
96.3 kg (212.3 pounds) |
Power/weight ratio
|
0.0976 HP/kg |
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
Overall height
|
1068 mm (42.0 inches) |
Overall length
|
1909 mm (75.2 inches) |
Overall width
|
800 mm (31.5 inches) |
Ground clearance
|
132 mm (5.2 inches) |
Wheelbase
|
1237 mm (48.7 inches) |
Fuel capacity
|
3.80 litres (1.00 US gallons) |
Oil capacity
|
0.90 litres (0.95 US quarts) |
Other specifications |
Color options
|
Red, blue, silver |
Starter
|
Electric & kick |
Comments
|
Cub sold in some Asian countries. |
