Honda Reflex 20062006 Honda Reflex specifications, pictures, reviews and rating |

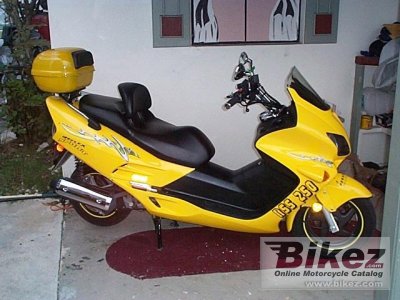

 2006 Honda Reflex. Joyce Wood Homestead Florida. Submit more pictures.
|
|
| Honda's profilation of this bike |
| Where will you be riding? The highway? Back roads? Around town? The Reflex has got you covered. Featuring a smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating, it´s perfect for going just about anywhere. |
| General information | |
|---|---|
| Model name | Honda Reflex |
| Model year | 2006 |
| Category | Scooter |
| Price as new | US$ 5499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.0 ccm (15.19 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 72.7 x 60.0 mm (2.9 x 2.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 30.0mm CV with auto-enricher |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Fully transistorized |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 25.0° |
| Front suspension | 33.0mm hydraulic fork |
| Front wheel travel | 99 mm (3.9 inches) |
| Rear suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability |
| Rear wheel travel | 119 mm (4.7 inches) |
| Front tire | 110/90-13 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 170.1 kg (375.0 pounds) |
| Seat height | 719 mm (28.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1544 mm (60.8 inches) |
| Fuel capacity | 12.11 litres (3.20 US gallons) |
| Other specifications | |
| Color options | Candy Blue |
| Comments | Model ID: NSS250 |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Honda Reflex discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2006 Honda Reflex discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Reliability for the 2006 Honda Reflex:  (60.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
