Honda Reflex 20042004 Honda Reflex specifications, pictures, reviews and rating |

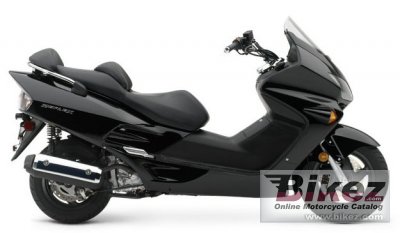

 2004 Honda Reflex. Picture credits - Honda. Submit more pictures.
|
|
| Honda's profilation of this bike |
| Sure it´s cool, and now it comes in two stylish new versions: the Reflex, in all-new Red, and the Reflex Sport, in Black with a snazzy short windshield and chrome accents. And with its smooth automatic transmission, Combined Braking System and plush, two-up seating, it´s a beauty that goes far beyond skin deep. |
| General information | |
|---|---|
| Model name | Honda Reflex |
| Year model | 2004 |
| Type | Scooter |
| Price as new | US$ 5199. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 72.7 x 60.0 mm (2.9 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33.0mm hydraulic fork;. |
| Front wheel travel | 99 mm (3.9 inches) |
| Rear suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability. |
| Rear wheel travel | 119 mm (4.7 inches) |
| Front tire | 110/90-13 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Seat height | 719 mm (28.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1544 mm (60.8 inches) |
| Fuel capacity | 12.11 litres (3.20 US gallons) |
| Other specifications | |
| Color options | Black, Red |
| Comments | Model id NSS250. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Honda Reflex discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2004 Honda Reflex discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Engine performance for the 2004 Honda Reflex:  (81.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
