General information |
|
Model name
|

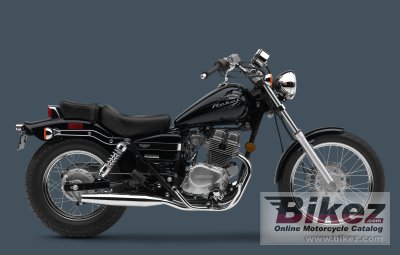

Honda Rebel |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 3399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
234.0 ccm (14.28 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
53.0 x 53.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Single 26mm diaphragm-type constant-velocity (CV) carburetor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
113 mm (4.4 inches) |
|
Front suspension
|
33mm fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Dual shocks with five-position spring-preload adjustability |
|
Rear wheel travel
|
74 mm (2.9 inches) |
|
Front tire
|
130/18-ZR17 |
|
Rear tire
|
130/90-15 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
150.1 kg (331.0 pounds) |
|
Seat height
|
676 mm (26.6 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
9.84 litres (2.60 US gallons) |
|
Other specifications |
|
Color options
|
Black, Ultra Blue Metallic |
|
Starter
|
Electric |
|
Comments
|
Model ID: CMX250C |
