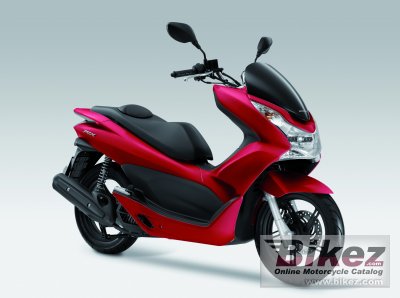

Honda PCX 125 20122012 Honda PCX 125 specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Rising fuel prices and awareness of environmental issues have had an impact on the way we think about transport. However, the true appeal of a scooter is not just its low running costs and ability to cut through the city rush hour. |
| General information | |
|---|---|
| Motorcycle name | Honda PCX 125 |
| Year model | 2012 |
| Type | Scooter |
| Rating | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.9 ccm (7.62 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 11.2 HP (8.2 kW)) @ 8000 RPM |
| Torque | 11.6 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 6000 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 52.4 x 57.9 mm (2.1 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. PGM-FI with automatic enrichment |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with electronic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | V-matic |
| Emission details | Meets current EPA standards. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.0° |
| Trail | 86 mm (3.4 inches) |
| Front suspension | 31mm hydraulic fork |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Twin suspension aluminium swingarm |
| Rear wheel travel | 75 mm (3.0 inches) |
| Front tire | 90/90-14 |
| Rear tire | 100/90-14 |
| Front brakes | Single disc. 3-piston caliper |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Wheels | 5-spoke cast aluminium |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 124.4 kg (274.3 pounds) |
| Seat height | 761 mm (30.0 inches) If adjustable, lowest setting. |
| Overall height | 1094 mm (43.1 inches) |
| Overall length | 1917 mm (75.5 inches) |
| Overall width | 738 mm (29.1 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1306 mm (51.4 inches) |
| Fuel capacity | 6.20 litres (1.64 US gallons) |
| Other specifications | |
| Color options | Grey, silver, black |
| Starter | Electric |
| Factory warranty | Year. Transferable, unlimited-mileage limited warranty |
| Comments | Model ID: PCX125 |
