Honda Pantheon 125 20022002 Honda Pantheon 125 specifications, pictures, reviews and rating |

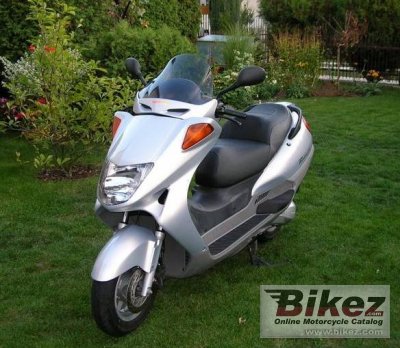

 2002 Honda Pantheon 125. lgorek. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Honda Pantheon 125 |
| Model year | 2002 |
| Category | Scooter |
| Rating | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.8 ccm (7.62 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 14.8 HP (10.8 kW)) @ 7000 RPM |
| Torque | 15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 6500 RPM |
| Compression | 7.0:1 |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Gearbox | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 110/90-12 64J |
| Rear tire | 130/70-12 62L |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Expanding brake |
| Diameter | 160 mm (6.3 inches) |
| Physical measures and capacities | |
| Dry weight | 149.0 kg (328.5 pounds) |
| Power/weight ratio | 0.0993 HP/kg |
| Seat height | 745 mm (29.3 inches) If adjustable, lowest setting. |
| Overall height | 1425 mm (56.1 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 735 mm (28.9 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda Pantheon 125 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda Pantheon 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Reliability for the 2002 Honda Pantheon 125:  (89.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
