General information |
Model name
|

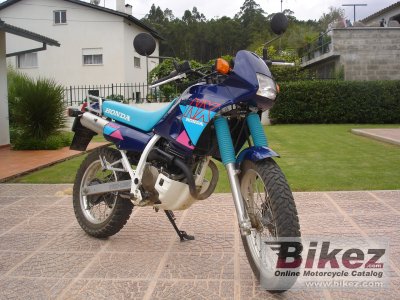

Honda NX 250 |
Model year
|
1992 |
Category
|
Allround |
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
249.0 ccm (15.19 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
26.0 HP (19.0 kW)) @ 8500 RPM |
Torque
|
22.0 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 5500 RPM |
Top speed
|
128.0 km/h (79.5 mph) |
Compression
|
11.0:1 |
Bore x stroke
|
70.0 x 64.8 mm (2.8 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
CDI |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
37 mm Telescopic forks |
Front wheel travel
|
220 mm (8.7 inches) |
Rear suspension
|
Pro-Link. Swingarm |
Rear wheel travel
|
200 mm (7.9 inches) |
Front tire
|
100/90-19 |
Rear tire
|
120/90-16 |
Front brakes
|
Single disc |
Rear brakes
|
Expanding brake |
Physical measures and capacities |
Dry weight
|
123.0 kg (271.2 pounds) |
Weight incl. oil, gas, etc
|
133.0 kg (293.2 pounds) |
Power/weight ratio
|
0.2114 HP/kg |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Overall length
|
2040 mm (80.3 inches) |
Wheelbase
|
1350 mm (53.1 inches) |
Fuel capacity
|
9.00 litres (2.38 US gallons) |
Other specifications |
Starter
|
Electric |
