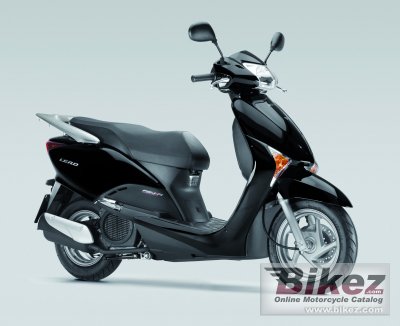

Honda NHX110 Lead 20112011 Honda NHX110 Lead specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda NHX110 Lead |
| Model year | 2011 |
| Category | Scooter |
| Rating | 3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 107.0 ccm (6.53 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | JF19E engine |
| Power output | 8.9 HP (6.5 kW)) @ 7500 RPM |
| Torque | 9.3 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 50.0 x 55.0 mm (2.0 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. PGM-FI electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Fully transistorised electronic |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | V-matic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic fork, 80mm axle travel |
| Rear suspension | Single-damper unit swingarm, 70mm axle travel |
| Front tire | 90/90-M12 |
| Rear tire | 100/90-M10 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Seat | 2-person seat |
| Physical measures and capacities | |
| Dry weight | 114.0 kg (251.3 pounds) |
| Weight incl. oil, gas, etc | 120.0 kg (264.6 pounds) |
| Power/weight ratio | 0.0776 HP/kg |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 1835 mm (72.2 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 105 mm (4.1 inches) |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 6.50 litres (1.72 US gallons) |
| Other specifications | |
| Color options | Red, yellow, white, silver, black |
| Starter | Electric |
| Comments | Sold in Japan. |
