General moped information |
Motorcycle name
|

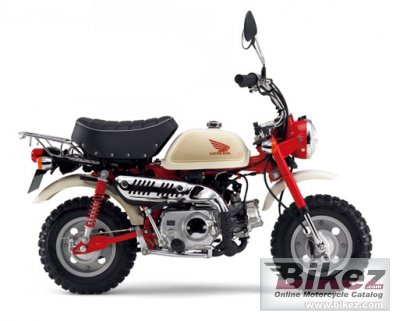

Honda Monkey 50 |
Year of manufacture
|
2011 |
Type
|
Minibike, cross |
Rating
|
3.0 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.0 ccm (2.99 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
3.6 HP (2.6 kW)) @ 8500 RPM |
Torque
|
3.4 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 5000 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
39.0 x 41.1 mm (1.5 x 1.6 inches) |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
Full transistor type battery ignition |
Cooling system
|
Air |
Gearbox
|
4-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiplate |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.0° |
Trail
|
42 mm (1.7 inches) |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swing arm |
Front tire
|
3.50-8 |
Rear tire
|
3.50-8 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
68.0 kg (149.9 pounds) |
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
Overall height
|
850 mm (33.5 inches) |
Overall length
|
1365 mm (53.7 inches) |
Overall width
|
600 mm (23.6 inches) |
Ground clearance
|
145 mm (5.7 inches) |
Wheelbase
|
895 mm (35.2 inches) |
Fuel capacity
|
5.50 litres (1.45 US gallons) |
Other specifications |
Color options
|
Red/white |
Starter
|
Kick |
Comments
|
Sold in the Asian market |
