| General moped information |
|---|

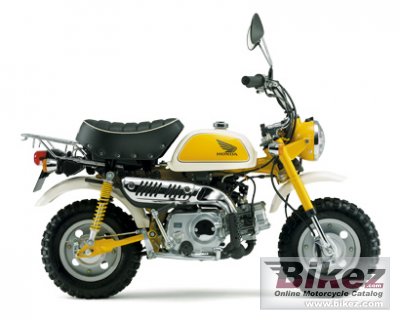

| Model: | Honda Monkey |
| Year: | 2013 |
| Category: | Minibike, cross |
| Rating: | 3.2 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 49.0 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 2.5 HP (1.8 kW)) @ 8500 RPM |
| Torque: | 3.4 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 5000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 39.0 x 41.1 mm (1.5 x 1.6 inches) |
| Fuel system: | Injection. PGM-FI |
| Fuel control: | Overhead Cams (OHC) |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiplate |
| Driveline: | Constant mesh |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 25.0° |
| Trail: | 42 mm (1.7 inches) |
| Front suspension: | Telescopic fork |
| Rear suspension: | Swing arm |
| Front tire: | 3.50-8 |
| Rear tire: | 3.50-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 68.0 kg (149.9 pounds) |
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height: | 850 mm (33.5 inches) |
| Overall length: | 1365 mm (53.7 inches) |
| Overall width: | 600 mm (23.6 inches) |
| Ground clearance: | 145 mm (5.7 inches) |
| Wheelbase: | 895 mm (35.2 inches) |
| Fuel capacity: | 5.50 litres (1.45 gallons) |
| Other specifications |
|---|
| Color options: | Red/white, yellow/white, blue/white |
| Starter: | Kick |
| Comments: | Sold in Asia. |
