2002 Honda Magna 50

Honda Magna 50 2002


2002 Honda Magna 50 specifications, pictures, reviews and rating

2002 Honda Magna 50

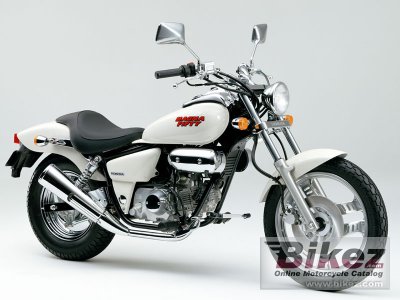

2002 Honda Magna 50. By Honda Motorcycles. Submit more pictures.
General moped information
Motorcycle name Honda Magna 50
Year 2002
Category Custom / cruiser
Rating 3.2  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Displacement 49.0 ccm (2.99 cubic inches)
Engine type Single cylinder, four-stroke
Power 3.9 HP (2.8 kW)) @ 8000 RPM
Torque 3.7 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM
Compression 10.0:1
Bore x stroke 39.0 x 41.4 mm (1.5 x 1.6 inches)
Fuel system Carburettor
Fuel control Overhead Cams (OHC)
Cooling system Air
Gearbox 4-speed
Chassis, suspension, brakes and wheels
Front brakes Single disc
Rear brakes Expanding brake
Physical measures and capacities
Dry weight 87.0 kg (191.8 pounds)
Power/weight ratio 0.0448 HP/kg
Seat height 635 mm (25.0 inches) If adjustable, lowest setting.
Overall height 945 mm (37.2 inches)
Overall length 1960 mm (77.2 inches)
Overall width 760 mm (29.9 inches)
Ground clearance 165 mm (6.5 inches)
Wheelbase 1320 mm (52.0 inches)
Fuel capacity 8.00 litres (2.11 US gallons)
