General information |
Motorcycle name
|

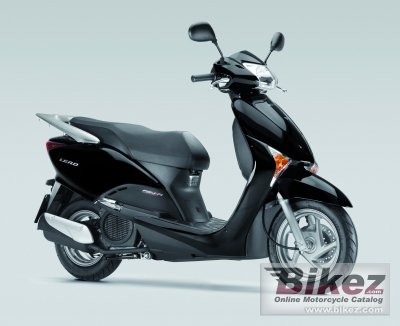

Honda Lead 110 |
Year of manufacture
|
2012 |
Type
|
Scooter |
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
107.0 ccm (6.53 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
8.9 HP (6.5 kW)) @ 7500 RPM |
Torque
|
9.3 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 6250 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
50.0 x 55.0 mm (2.0 x 2.2 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Fully transistorised electronic |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-matic |
Chassis, suspension, brakes and wheels |
Front suspension
|
33mm telescopic fork, 80mm axle travel |
Front wheel travel
|
70 mm (2.8 inches) |
Rear suspension
|
Single-damper unit swingarm, 70mm axle travel |
Rear wheel travel
|
80 mm (3.1 inches) |
Front tire
|
90/90-M12 |
Rear tire
|
100/90-M10 |
Front brakes
|
Single disc. Combined dual-piston calliper, drilled rotor and resin mould pads |
Diameter
|
190 mm (7.5 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
130 mm (5.1 inches) |
Wheels
|
U-section 5-spoke cast aluminium |
Seat
|
2-person seat |
Physical measures and capacities |
Dry weight
|
114.0 kg (251.3 pounds) |
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
Power/weight ratio
|
0.0776 HP/kg |
Seat height
|
740 mm (29.1 inches) If adjustable, lowest setting. |
Overall height
|
1125 mm (44.3 inches) |
Overall length
|
1835 mm (72.2 inches) |
Ground clearance
|
105 mm (4.1 inches) |
Wheelbase
|
1275 mm (50.2 inches) |
Fuel capacity
|
6.50 litres (1.72 US gallons) |
Other specifications |
Color options
|
Red, white, silver, black |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
