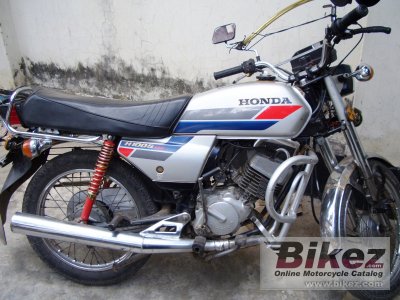

Honda H 100 S 19861986 Honda H 100 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Honda H 100 S |
| Year | 1986 |
| Category | Naked bike |
| Rating | 4.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 100.0 ccm (6.10 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Top speed | 125.0 km/h (77.7 mph) |
| 0-100 km/h (0-62 mph) | 12.00 seconds |
| Max RPM | 4500 |
| Compression | 7.2:1 |
| Bore x stroke | 50.5 x 49.5 mm (2.0 x 1.9 inches) |
| Valves per cylinder | 1 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | digital |
| Cooling system | Oil & air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet plate |
| Fuel consumption | 7.50 litres/100 km (13.3 km/l or 31.36 mpg) |
| Greenhouse gases | 174.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Single stainless pipe |
| Chassis, suspension, brakes and wheels | |
| Frame type | Stell cradle |
| Front suspension | Inverted forks |
| Rear suspension | Twin spring shocks |
| Front tire | 2.50-18 |
| Rear tire | 2.75-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 93.0 kg (205.0 pounds) |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall length | 1860 mm (73.2 inches) |
| Overall width | 780 mm (30.7 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Brown/maroon, red, black |
| Starter | Kick |
| Comments | Model also called Honda H100S Super. |
