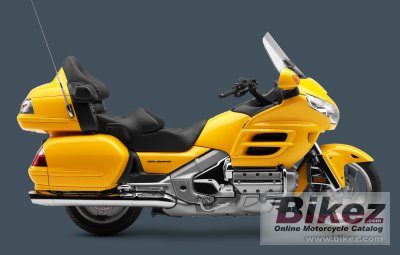

Honda Gold Wing Audio Comfort Navi XM 20102010 Honda Gold Wing Audio Comfort Navi XM specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The Gold Wing is truly a touring bike that has it all: power, sporting performance, and long-range amenities to make any trip a first-class ticket to paradise. Rest assured that, on the 2010 Gold Wing, your touring experience will be the ultimate in long-distance luxury. |
| General information | |
|---|---|
| Model name | Honda Gold Wing Audio Comfort Navi XM |
| Year of manufacture | 2010 |
| Type | Touring |
| Price as new | US$ 25399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1832.0 ccm (111.79 cubic inches) |
| Type of engine | Six cylinder boxer, four-stroke |
| Compression | 9.8:1 |
| Bore x stroke | 74.0 x 71.0 mm (2.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Computer-controlled digital with three-dimensional mapping |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Fuel consumption | 6.53 litres/100 km (15.3 km/l or 36.02 mpg) |
| Greenhouse gases | 151.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.2° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | 45mm cartridge fork with anti-dive system, |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets |
| Rear wheel travel | 104 mm (4.1 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 180/60-R16 |
| Front brakes | Double disc. Dual full-floating 296mm discs with CBS three-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Single disc. Single ventilated 316mm disc with CBS three-piston caliper |
| Diameter | 316 mm (12.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 406.0 kg (895.0 pounds) |
| Seat height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Wheelbase | 1689 mm (66.5 inches) |
| Fuel capacity | 24.98 litres (6.60 US gallons) |
| Other specifications | |
| Color options | Metallic Red, Metallic Black, Pearl Yellow, Metallic Titanium |
| Starter | Electric |
| Comments | Satellite-Linked Navigation System and XM Radio. Model ID: GL18HPM. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Honda Gold Wing Audio Comfort Navi XM discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Honda Gold Wing Audio Comfort Navi XM discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Racing track capabilities for the 2010 Honda Gold Wing Audio Comfort Navi XM:  (47.3 out of 100)Click here for complete rating. |
|
